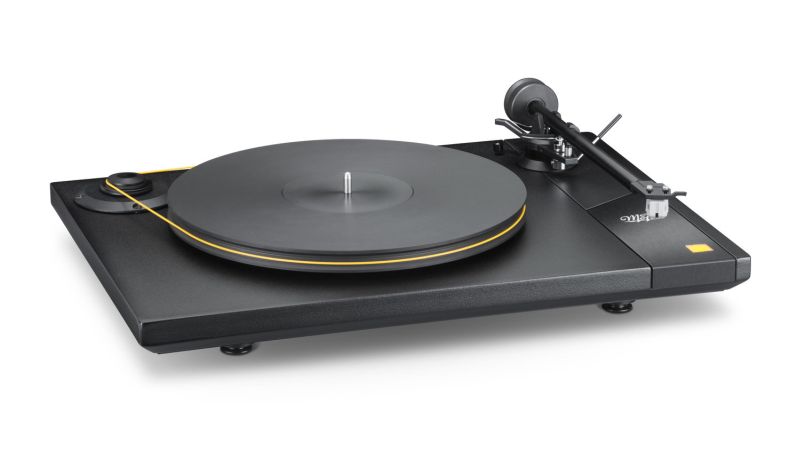

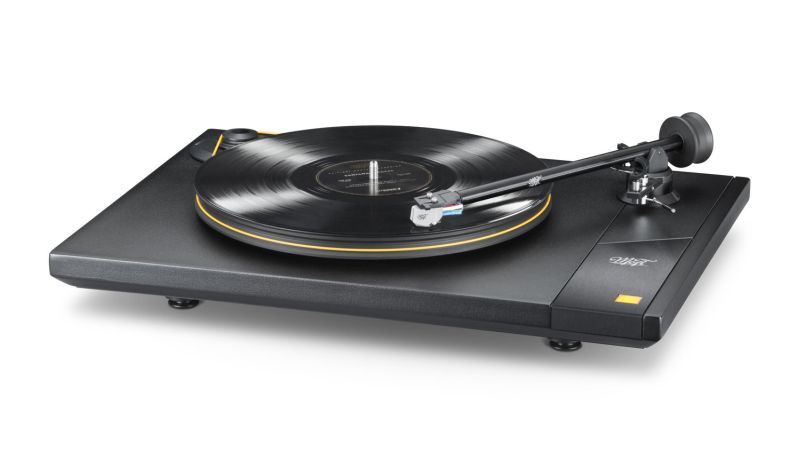

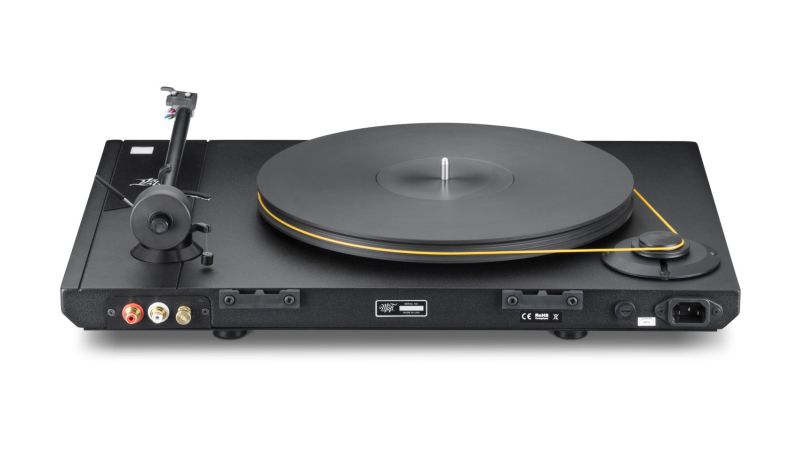

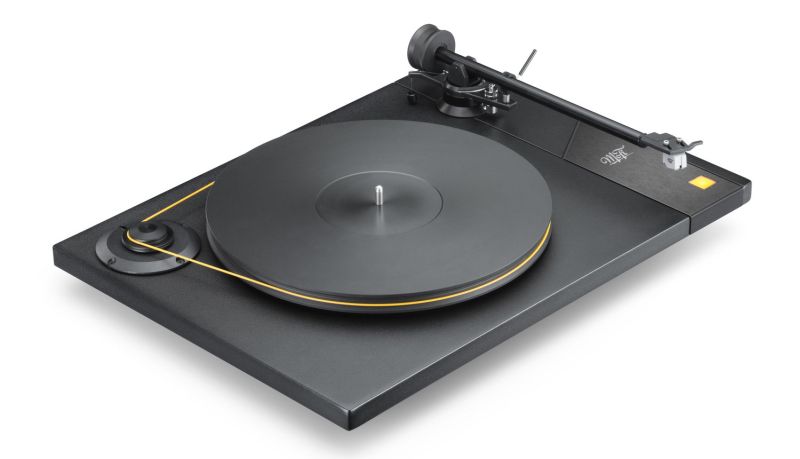

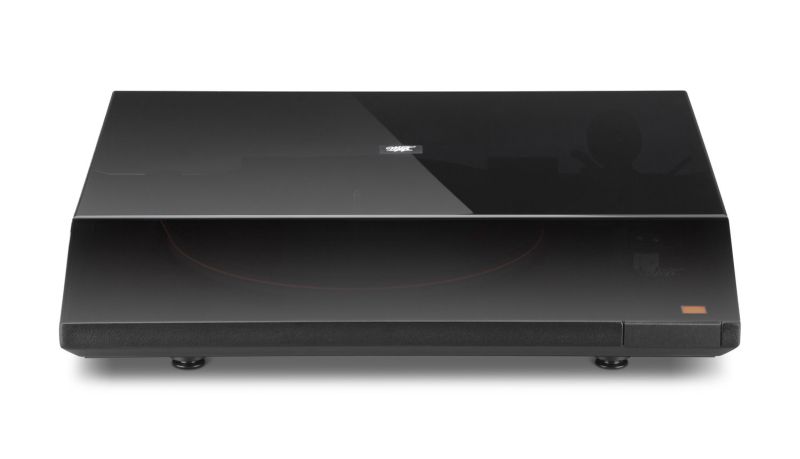

StudioDeck




It’s only natural to use the word “Studio” in the name of one of our turntables, as doing so brings together MoFi’s software and hardware sides. And while it’s our entry-level offering, StudioDeck produces high-caliber sound at a value price. Designed in collaboration with some of the world's finest audio designers, StudioDeck features an incredible amount of ingenuity and technology usually reserved for much more expensive products.

STUDIO TONEARM

Custom developed and manufactured in the USA, this 10-inch straight aluminum gimbaled bearing tonearm delivers the ideal balanced of rigidity and low tracking error, so all you hear is what is in the grooves. Tweak to your heart's delight with provisions for adjustable tracking force, VTA, azimuth, and anti-skate.

ISOLATED AC SYNCHRONOUS MOTOR

Our 300 RPM stepped-pulley AC motor provides excellent speed stability for pitch accuracy and rhythmic drive. The Delrin® pulley has two positions for 33 1/3 and 45 RPM speed selection. Motor vibrations are kept away from the platter and stylus by using advanced dampening materials that decouple the motor from the rest of the turntable.

CONSTRAINED LAYER DAMPENING

StudioDeck features an aluminum plate carefully bonded to an MDF body to add mass and eliminate tonal coloration, maintaining the true sound found on the record.

SPECIFICATIONS

Motor
300 RPM AC Synchronous

Speeds
33 1/3 RPM, 45.0 RPM

Platter
3.88 lb Delrin®

Wow & Flutter
0.017% – 0.025%

Signal-To-Noise Ratio
72dB

Power Supply Requirements
120V 60Hz, 220-230V 50Hz, 100V 50Hz

Power Consumption
< 5W

Dimensions
19.69" x 5.375" x 14.25"

Weight
19.1 lb

TONEARM SPECIFICATIONS

Type
10" straight aluminum, gimbaled bearing

Overhang
0.71" (18mm)

Offset Angle
22.8˚ (+/- 2˚ adjustable)

Cartridge Weight Range
5g – 10g

FEATURES

• 33-1/3 and 45.0 RPM belt drive turntable

• Custom design and manufactured in the USA

• 10-inch MoFi Studio Tonearm

• 3/4-inch Delrin® platter

• Isolated 300 RPM AC synchronous motor

• Anti-Vibration feet designed by HRS
