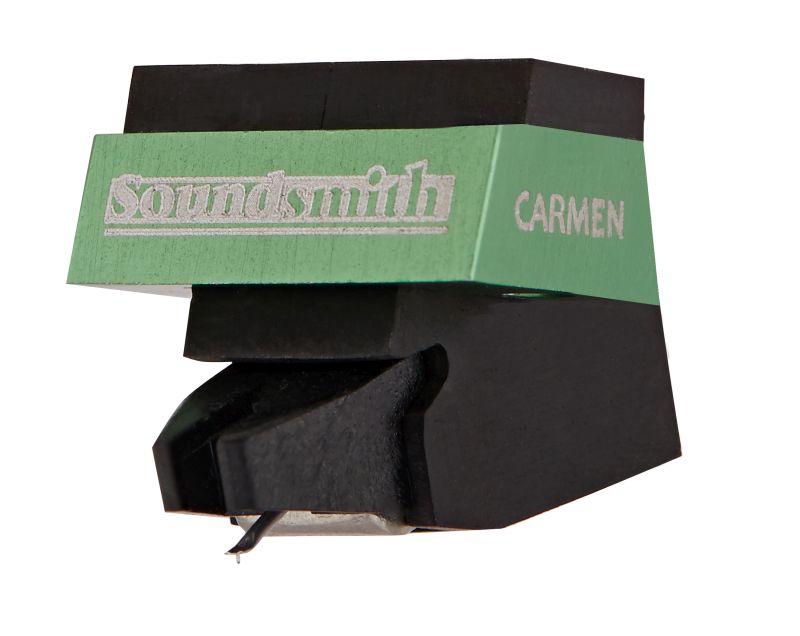

The Created out of the desire to make a very high performance design at an affordable price. Just slightly lush with a well-developed midrange, the Carmen is surprisingly pleasing and will seduce you into late listening sessions. The stylus used is a part of what makes it special; an ultra-low mass occlusion free nude diamond cut and polished into a true hyper-elliptical shape. The combination of low tip mass and the Moving Iron gives the Carmen a tremendous resolution advantage over MC designs selling for more than twice the price. Housed ina handmade solid Ebony case, the Carmen delivers.
Technical specifications
Stylus: Nude Elliptical, 0.120 mm SQ
Radius of curvature: 6 x 17 μm
Cantilever: Aluminium Alloy
Recommended Tracking force:
12 mN/ 1.2gm (high)
14 mN/ 1.4 gm (medium)
Effective tip mass: 0.35 mg
Compliance:
28 μm/mN (high)
22 μm/mN (medium)
Frequency response: 20- 20.000Hz +/- 2.5 dB
Channel separation (stereo only):
1000 Hz>26 dB
50 - 15.000>20 dB
Channel difference:
<1.6 dB (Stereo)
<1.0 dB (Mono)
Output voltage: 2.12 mV
Cartridge weight: 6.8 Grams
Loading: >= 47 kΩ
