Flame




The Flame is a music lover’s amplifier and is most at home as part of a stand-alone stereo system. Its design is based upon nearly 20 years of our expertise in analogue audio engineering and it delivers all of the musical performance the artist intended. Subtle nuances and large dynamics are both rendered faithfully from uncompressed analogue sources.
The 25 Watt in A-class per channel of the Flame provides full-bodied musical reproduction that you will appreciate for a long, long time.
The result a completely modern amplifier dedicated to the timeless quest for musical enjoyment.

Technical specifications:

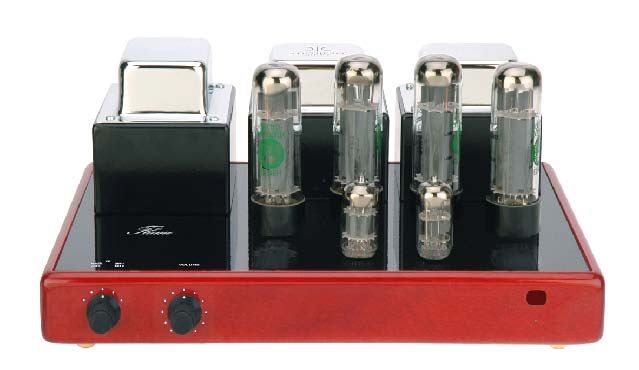

Power stage (1ch): 2 x 6CA7-EL34
Driver (1ch): 12AU7-ECC82
Input stage (1ch): NJM2114L Op-Amp
Configuration: Push-Pull pentode configuration
Power output: 25W RMS/6 ohm A-Class
Frequency response: 20Hz to 20KHz +-0.5dB
Signal/Noise ratio: >90dB, A weighted

Controls:
Front: Input switch selector, volume, IR receiver, Led.

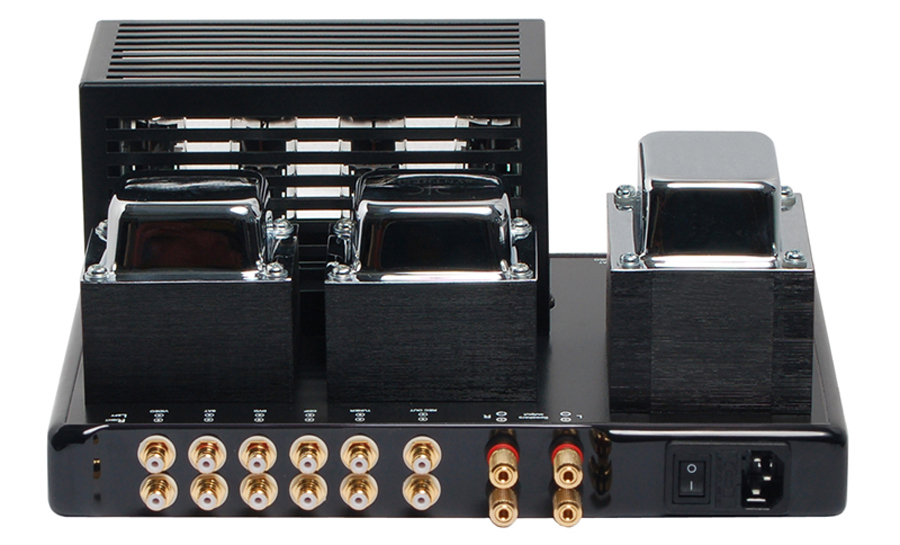

Rear: On-Off switch, male power sck, RCA gold plated connectors, binding posts, protection fuses.
Inputs: 4 Input line level, Cd player, Tuner, Video, AUX.
Outputs: Tape out
Power consumption: 200W Max
Finish: Ecologically sensitive lacquer
Dimensions: (w,d,h) 320x220x120mm
Weight: 10.0 Kg

REMOTE CONTROL:
Transmitt: RC5 Infrared code
Function: Mute, Volume
Battery: 2 x 1,5V AAA
Power consumption: 20mW Max
Finish: Plastic grey/black
Dimensions: (w,d,h) 45x160x25 mm
Weight: 150 gr. (Battery included)
